Door Finger Protector®

The world’s only modular door safety system, Door Finger Protector® by Safety Assured is designed specifically to meet the statutory (and reasonably practicable) requirements under Common Law Duty of Care and The Health and Safety at Work Act etc. 1974.

The shield system is designed to retain its convex shape thereby preventing injury or obstructing a closing fire door. Its fixings do not perforate fire rated doors and the shield can be safely extended to avoid restricting larger or wider opening doors.

Door Finger Protector® is unobtrusive, affordable and easy to maintain.

Gate Cap

The Gate cap is one size and is designed to complement the Door Finger Protector® range by protecting fingers from the top of the hinge cavity on low level gates.

Hinge Cavity

There are two basic Door Finger Protector® hinge cavity products for:

Standard Doors (HC) or Large Doors (HCL)
Suitable for conventional doors with standard butt, rising butt or pivot hinges, including glass.

Non Standard Doors (HC-N)
All other door and frame types including PVCu, Crittall, steel, glass, aluminium, non-standard pivot hinge, bi-folding doors etc.

Most doors can be protected with a single Door Finger Protector® Hinge Cavity (HC/HCL) shield section, however the unique (patented) modular design allows the shield section to be extended safely to fit any door size.

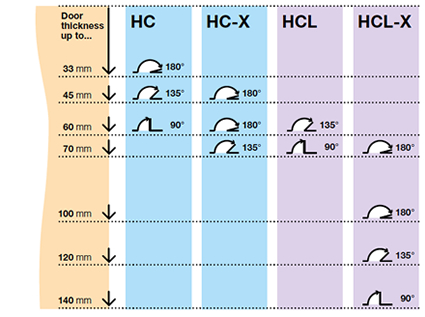

Open the door as far as it will go to measure the door thickness and determine the maximum opening angle. Use the table on the right to see if the shield section needs to be extended. If you prefer, you can restrict the door opening angle with a door stop as an alternative to extending the shield.This guide is for standard butt hinged doors as shown in the diagram.

product-right-img-1

If you have any doubts at all, or if you need a larger variation please call us on 01708 855 777. It is highly likely we can effectively shield the largest door in the world!

Hinge Pin

The Hinge Pin side (HP) Finger Protector® is supplied in one size to fit all hinged doors with the exception of large parliament hinges. These however, can be shielded; call us for advice. Used in conjunction with Door Finger Protector® the risk of finger entrapment injuries on the hinged edge of doors is totally eliminated.

As with Door Finger Protector®, all types of doors including timber, metal and PVCu – as well as doors which open to 180 degrees, can be fitted with the hinge pin device.

SLIDE SAFE™

Sliding doors also present a danger of finger and hand injury. Safety Assured Slide Safe™ creates a safe gap between the door’s leading edge and the closing jam. Available in sizes depending on depth of door – SP45, SP50, SP55.

Slide Safe™ has been designed primarily for external two-panel in-line sliding door systems, either left-hand or right-hand opening.

Slide Safe™ is not intended for use with ’tilt and slide’ or ‘lift and slide’ door systems. For aluminium sliding door systems use ‘SP45’.

For PVCu or timber sliding door systems, measure the overall width of the frame and specify ‘SP50’ for door frames 73-110mm wide and ‘SP55’ for frames 120-150mm wide.

product-right-img-2

Safety Assured conforms to the statutory requirement based Children’s Charter Door Safety Standard / Code of Practice
child-charter-badge
To comply with UK Statutory Regulations we provide you with:

Site Survey

We assess all doors on your premises using our own door safety specialists

Installation
Our technicians carry out installation to meet your statutory requirements
Maintenance

If you take out the Children’s Charter annual maintenance service plan, this will cover your statutory duty of care for peace of mind

Guarantee
10 year material warranty on Door Finger Protector® and best value guaranteed
